Sailboat hull Conversion

In this book I will be illustrating a sailboat hull conversion using 'Bezier Chine Design and Construction'.  For the purpose of the book I am resurrecting an old 'Double Hard' Chine designed by myself years ago to illustrate a double hard chine sailboat hull conversion to a True Round sailboat hull form.

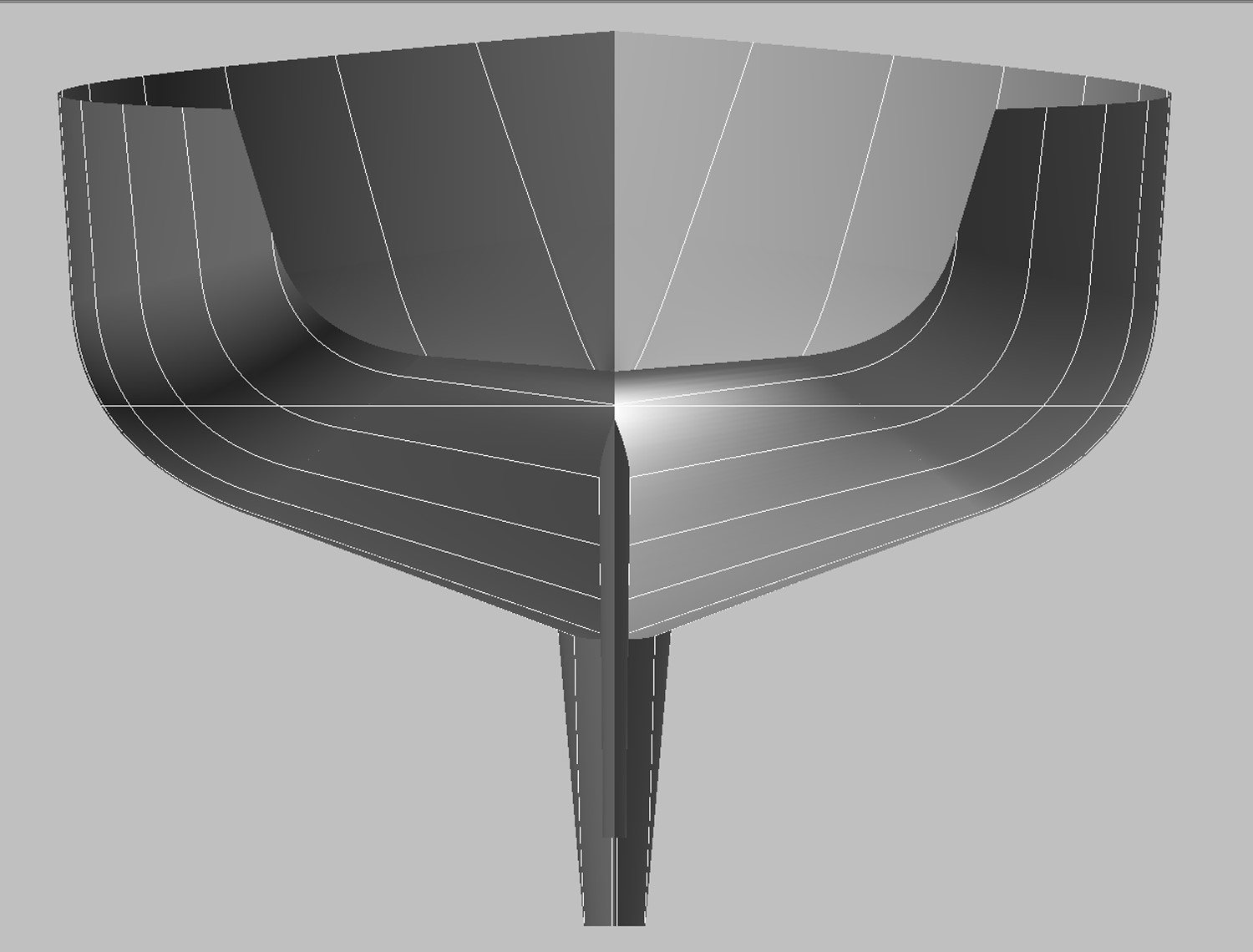

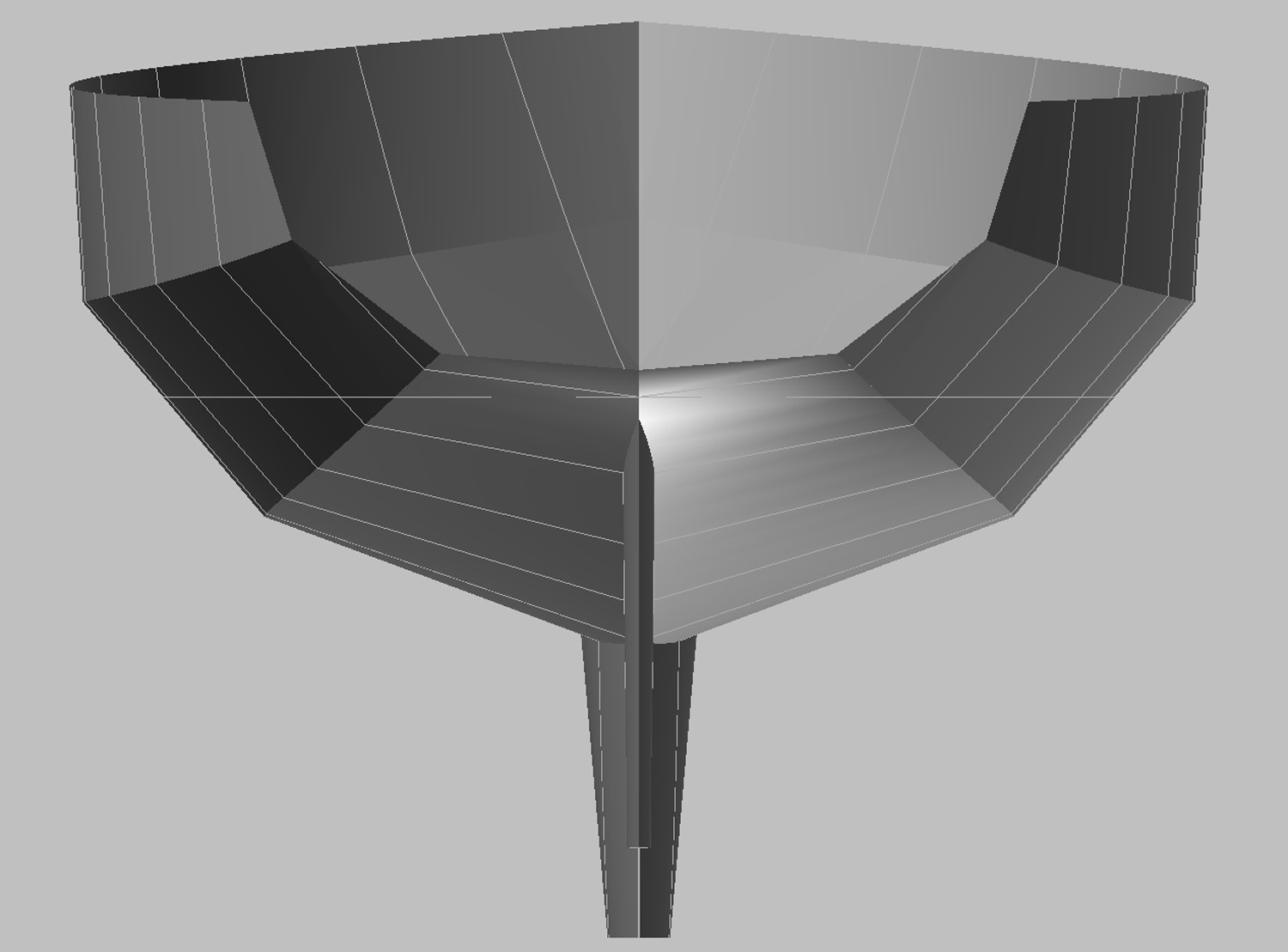

The first set of illustration show a bow and stern view of the hull.  The section view is always the most telling.  The chine lines of the hard chine version are easily seen.  The location of these lines a strictly held in the True Round Version of the hull.  Here these chine lines become the the the point of tangency between the true round section of the hull and the upper and lower developable surfaces.

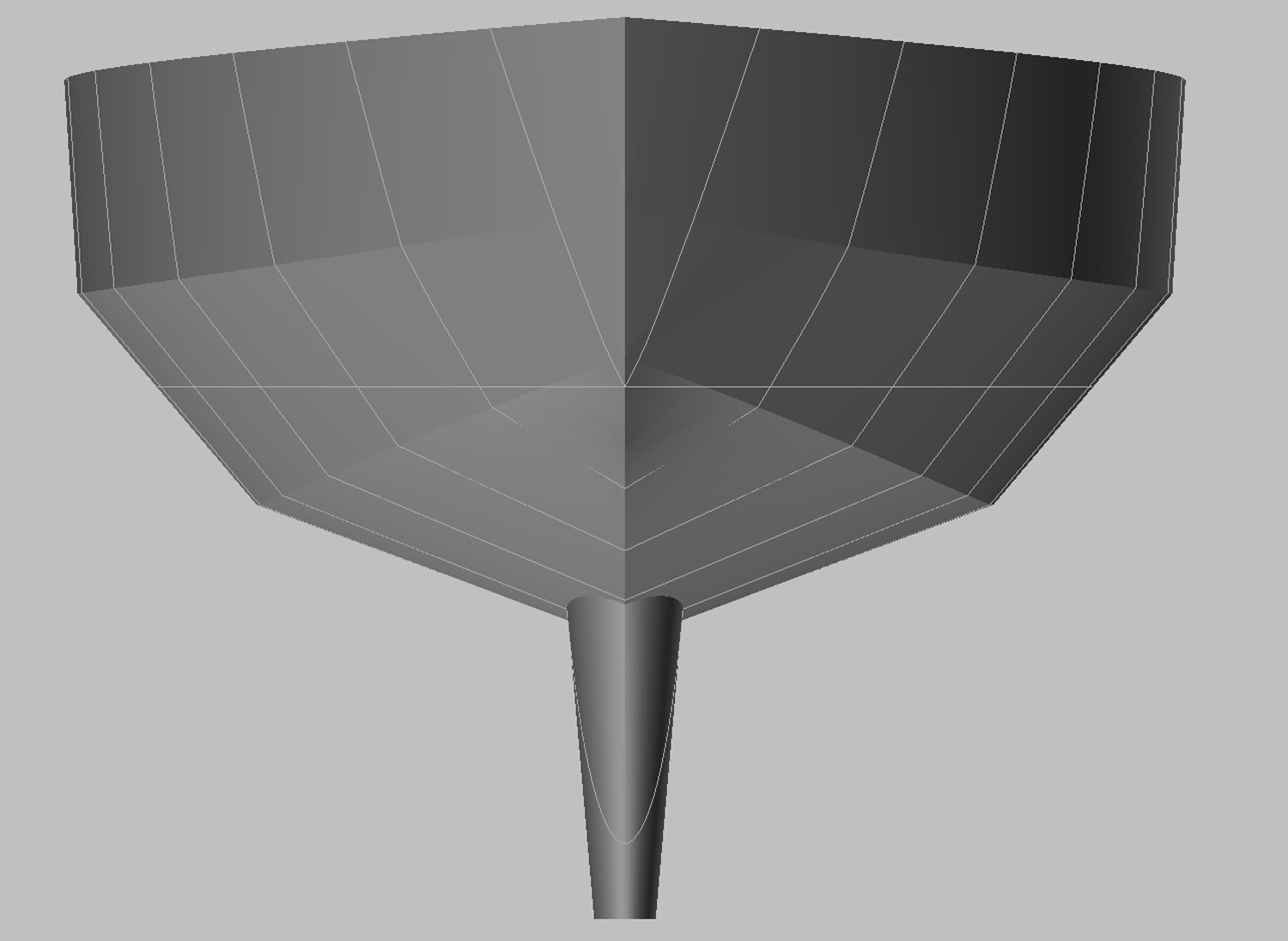

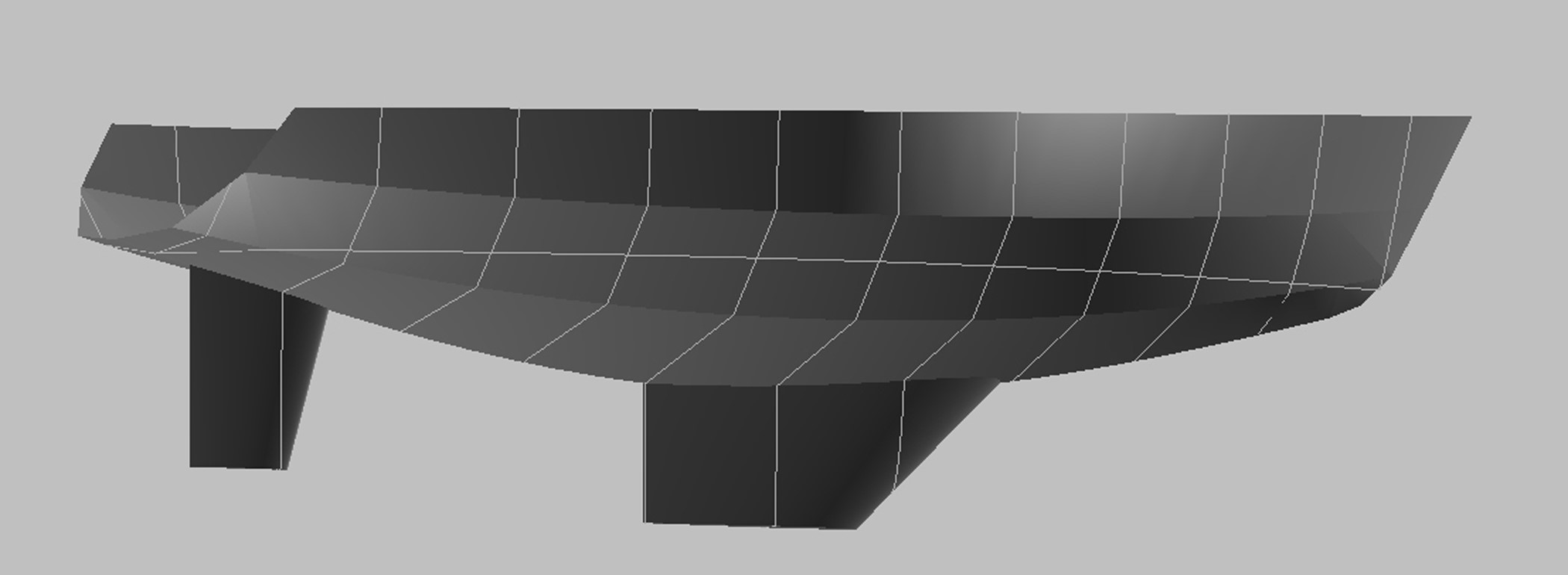

The next set of illustration show a bow and stern view of the hull along its length.  As in the section views the orginial chine lines of the double hard chine version become the point of tangency between surfaces.















What's in the Book

This book is available on Amazon.com in softcover or purchased here and instantly downloaded to your email address in PDF file format


Development of Bezier Chine

Describes the three types of Bezier Chine hulls and how they came to be.  Read 'True Round Metal Boat Building - Bezier Chine Design' for a full understanding of the construction method.

Required Drawings

To convert an existing Double Hard Chine hull to a True Round hull specfic information is required.  This section describes the Lines drawing, Table of Offsets, and the Construction Plan and Profile drawings.Required Drawings.

Conversion Process

<p>Describes the conversion process, which is broken down into two steps.  The first step is the conversion of the hull form to True Round.  The second step is to correct the Displacement and Center of Gravity as related to the Design Waterline.

Hull Form - Hydrostatics - Coefficients

In this Chapter I review the true round hull form and compare the hydrostatics ans coefficients of both hull forms.


Stability

The stability of both designs are compared to each other.


Resistance

The resistance of both designs are compared to each other.


Speed Predictions

Both design are calculated here and presented Charts and Graphs.  From these calculations a race will be run over a 10 mile windward-Leeward course


 A Readers Synopsis

In the last chapter I will leave it up to the Reader to make the final Analysis based on all the aboved.
